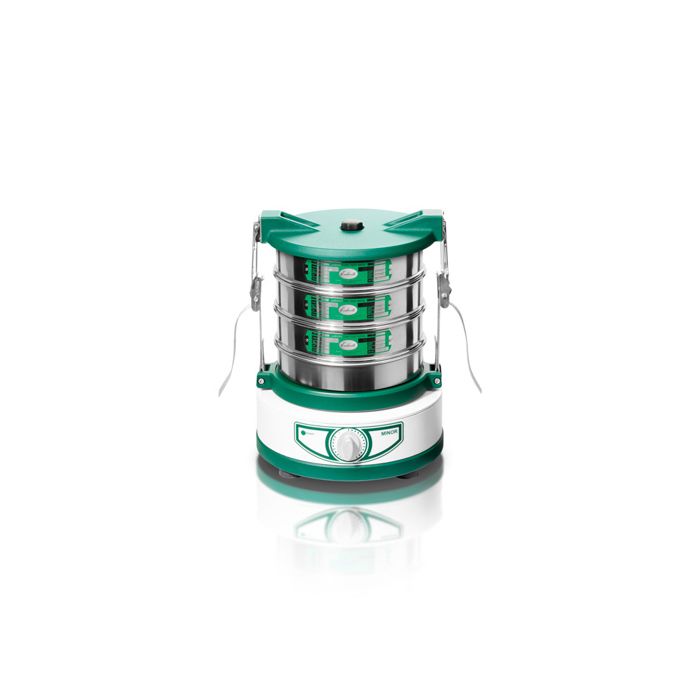

SIEVE SHAKER MINOR 200, 110V/60Hz
It is ideal for use in laboratories and plants since it is compact and genuinely portable (weighing only 17kg). The sieve stack is held firmly in position by a clamping belt system. Removing it allows the whole unit to be stored in a space less than 200 mm high. There are no rotating parts in the Minor 200 – consequently, it is quiet in operation and maintenance-free.
- Electromagnetic drive for quiet and virtually maintenance-free operation
- Compact & portable (weighing only 17 kg)
- Requires only small storage space due to small footprint and easily removable clamping belt system (included)
- Easy to use
- Different voltages available
- Complies with the requirements of AASHTO T 27
| Range | 38 µm to 125 mm |
| Drive/sieving motion | electromagnetic |
| Max. batch/feed capacity | 3 kg |
| Max. number of sieves | 8 full height / 16 half height (200 mm / 8″ dia sieves) |
| Amplitude | ~ 1.6 mm* fixed |
| Speed | 3,000 min-1 at 50 Hz |
| Time display | analog, 0 – 60 min, continuously |
| Suitable for dry sieving | yes |
| Suitable for wet sieving | – |
| Serial interface | – |
| Sieve diameter | 100 / 200 mm 3″ / 8″ |
| Min. number of sieves | 2 full height 200 mm / 8″ dia sieves |
| Clamping device | clamping belt system (included) |
| Model | benchtop |
| Protection code | IP 20 |
| Electrical supply | different voltages available |
| Power connection | 1-phase |
| W x H x D | 262 x 126 mm |
| Net weight | ~16 kg |
| Standards | CE |
